The last part of the blog series. For enrolling the certificates to managed devices, you have to create 2 different profiles. The trusted certificate profile will be needed if you are creating a SCEP profile. So, the first thing is creating a Trusted Certificate profile in Microsoft Intune.

Alrighty then, let’s try

You got now a fully loaded CA environment that is ready for enrolling certificates via Microsoft Intune. The only thing we have to do is making a SCEP Configuration profile in Intune. Before we do that, we have to add de root certificate in Intune first. We must export the RootCA certificate into a *.cer file and then we have to import it into Intune.

Trusted Certificate

Go to your NDES server and open an MMC via Run.
Go to file -> Add/Remove Snap-in..
Select Certificates and click on the Add button.
Select Computer Account and Click Next.
Click Finish.
Click Ok.
Go to Certificate (local computer) -> Trusted Root Certification Authorities -> Certificates.
Right click on the Root CA certificate -> All Tasks -> Export
Next
Next
Save the export in a directory.
Next
Finish
Ok.
Go to your Azure Portal. Go to the Intune portal -> Device Configuration -> Profiles. Click on the Create profile button.

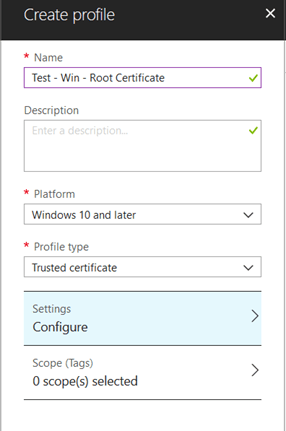

Give the profile a name.

Platform = Windows 10

Profiletype = Trusted Certificate.

Click on Settings to configure.

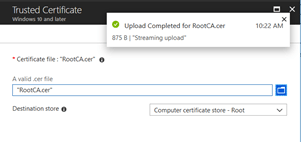

Browse to your exported RootCA.cer file. Click on the Ok button if the upload was successful.

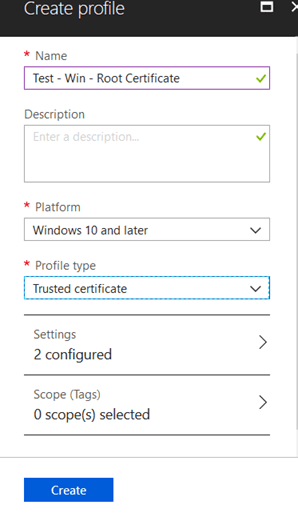

Click on the Create button to create the profile.
You must assign the profile to a group or to all users and devices. Click Assignments

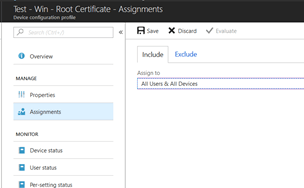

Select All Users & All Devices and click on the Save button.

You are done with creating and assigning the Root Certificate to users and devices. Next step is to create a SCEP profile.

SCEP Profile

In the previous step, we created a trusted certificate profile in Intune. This is necessary for the SCEP profile. You must enroll the RootCA certificate to the devices before the device or user can request a certificate at the CA. This is done and now we going to make a SCEP profile.

Go to the Intune portal -> Device configuration -> Profiles and click on the Create Profile button.

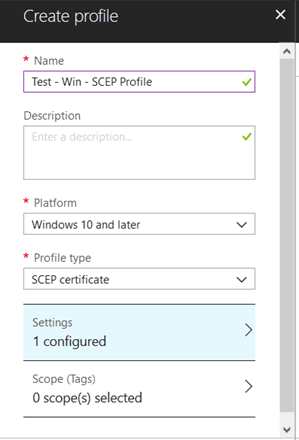

Give the profile a name. Platform is Windows 10 and later. Profile type is SCEP certificate.

Click setting to configure the profile.
Take the settings over from the example. Root Certificate is the profile we created in the previous step.

Scroll down.
Do not forget to add Client authentication and the External URL/certsrv/mscep/mscep.dll as Server URL.

Click on the Ok button.

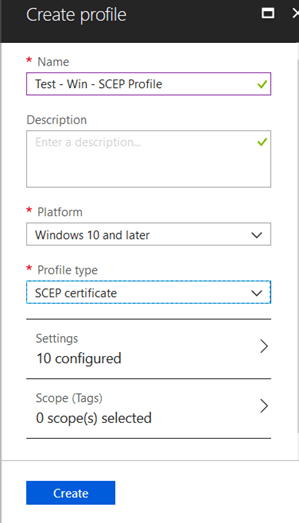

Click on the Create button to create the profile.
Click Assignments

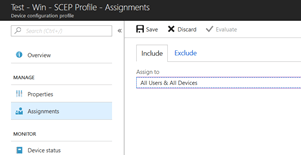

Choose for All Users & All Devices and click on the Save button.

We are ready to enroll certificates on the managed devices. Go to your managed device and wait until the certificate has enrolled.

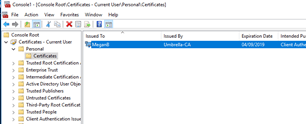

Open MMC via Run and add the Certificates snap-in. This time you have to choose My User account instead of Computer Account. In Personal, you see the certificate, which is enrolled by Microsoft Intune.
You can also check the Device Configuration status of your managed device in Intune portal.

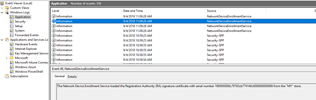

And you can also check the Application eventlog on your NDES server.

Final

So finally, you got a working certificate enrollment in Microsoft Intune at the moment. The user can request a certificate via Microsoft Intune to your Certification Authority. Based on that, CA will issue the certificate and NDES will enroll the certificate to the (mobile) device.  I hope that you have enjoyed the blog series and that you have a running SCEP deployment.

Thanks for reading the blog. If you have any questions or comments about this, do not hesitate to contact me by email or by posting a comment here below. I am also active on social media and some community forums, like Technet forum, Yammer, and Techcommunity.

Good luck and Take care now, bye bye then…
